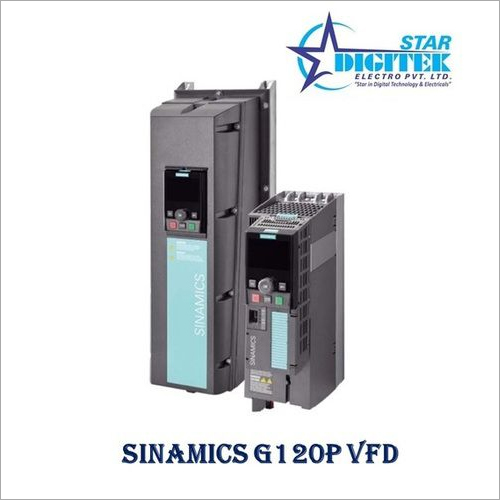

SIEMENS G120P

SIEMENS G120P
SIEMENS G120P
Send Inquiry
Product Code : 13
Brand Name : Siemens G120P
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 20000 INR/Piece
Product Specifications
  • Product Type
  • VFD
  • Width
  • MODEL SPECIFIC Millimeter (mm)
  • Color
  • GRAY BLACK
  • Material
  • INDUSTRIAL DRIVES
  • Application
  • Motion Control
  • Protection Level
  • Other
  • Power
  • AS PER REQUIREMENT Ampere (amp)
  • Temperature
  • 60 Celsius (oC)
  • Frequency (MHz)
  • 50 / 60 Hertz (HZ)
  • Voltage
  • 24VDC / 230VAC Volt (v)
  • Rated Voltage
  • 215 / 415 V AC Volt (V)
  • Energy Consumption
  • Depends Energy
  • Size
  • AS SELECTED MODEL
  • Output Type
  • Motion Control
  • Dimension(L*W*H)
  • Depends Millimeter (mm)
  • Weight
  • 15 Kilograms (kg)
  • Warranty
  • 12 months
Product Description

Sinamics G120P

  • SINAMICS G120 is the modular converter system that addresses the widest range of requirements. Its modular design and wide range of power ratings - extending from 0.55 up to 250 kW - always ensures that you can configure the optimum converter for your particular application.
  • The converter series is available in three voltage variants for connection to 200 V, 400 V and 690 V power supply networks.
  • With lots of innovative functions - all major facts at a single glance

Voltage

1/3AC 200 - 240 V +/- 10 %
3AC 380 - 480 V +/- 10 %
3AC 500 - 690 V +/- 10 %

Power range

0.55 kW - 250 kW (LO)

Degree of protection

IP20

Environmental class

Class 3C2, (3C3 with SIPLUS)

Ambient temperature

0 to 50oC

EMC

According to IEC 61800-3 up to Category C2

Standards

CE, UL, cUL, c-Tick

Safety Technology

Safety Integrated: STO (SIL 3, PL e, Kat. 3), SS1, SBC, SLS, SDI, SSM, PROFIsafe

Communication

PROFINET, PROFIBUS, USS, Modbus, Ethernet IP, BACnet

Control procedure

U/f, Flux Current Control, vector control with and without encoder

Functions

Basic positioning function with Epos, regenerative capability through efficient infeed technology (Power Modules PM250 only), PROFIenergy, PROFIdrive

Product details

Motor Power

0.37 kW - 400 kW

Voltage

220-240 v

IP Rating

IP20

Model Number

G120P

Frequency

50-60 H

Trade Information
  • FOB Port
  • .
  • Supply Ability
  • Per Month
  • Delivery Time
  • 1 Week
  • Sample Policy
  • Free samples are available
  • Packaging Details
  • Box Packing
  • Main Domestic Market
  • West Bengal
  • Certifications
  • CE UL
